Modell
FP10000q

Eigentum

Kanäle
4-Kanal-Endstufe
Art
Professioneller Leistungsverstärker
8Ω Ausgangsleistung
1350 W x 4
4Ω Ausgangsleistung
2100W X 4
Farbe
Schwarz Blau
Zertifizierung
CE ROHS, TÜV
Klasse
TD
Garantie
3 Jahre
Kondensatoren
Siemens Kondensatoren 3300uf / 200V
Spezialdienst
OEM-Service angeboten

Produktbewertung

Darstellung

FP10000Q: One FP10000q amplifier can use with 4 pcs Dual 15 inch speaker

TECH SPEC OVERVIEW
Four-channel flexibility
Original sound quality – impeccable sonic performance standards with durability and greater efficiency
Patented Class TD amplifier topology – Road-proven output stage delivers Class B audio quality with Class D efficiency
Regulated Switch Mode Power Supply (R.SMPS) – Output power remains constant even with significant drops in the mains voltage

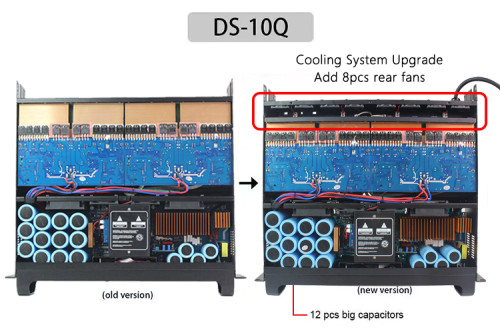

Efficient cooling system - Unique, lightweight Intercoller copper cooling system dissipates more heat to allow extended peak output
Adjustable parameters - Selectable Gain, scalable Voltage Peak Limiter (VPL), and bridge-mode operation allow custom configuration for any application
Comprehensive protection and warning – Excessive output current, DC, high temperature, very high frequency (VHF), short circuit, open load, mains fuse protection, and soft start

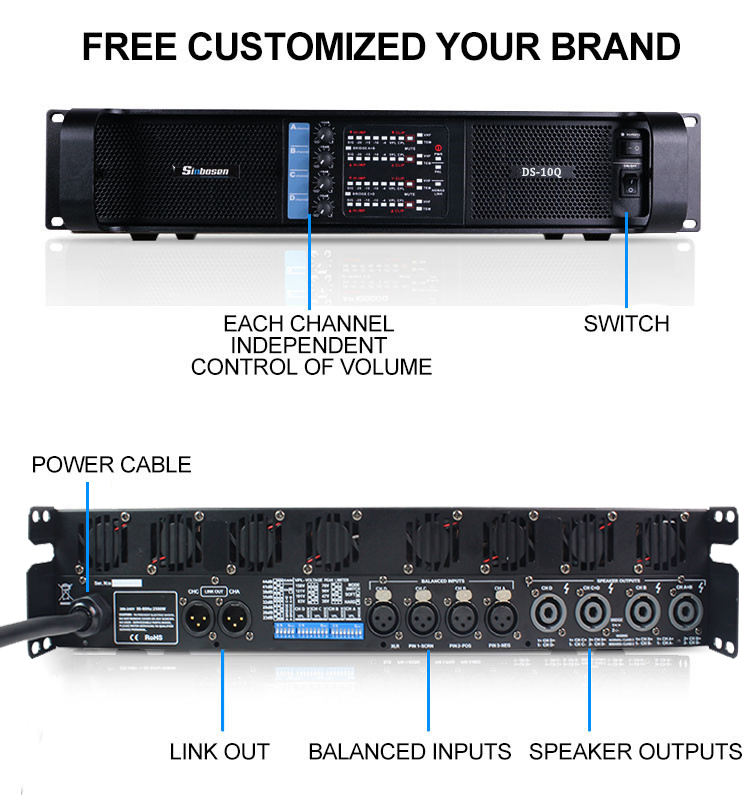

XLR input connectors
Heavy-duty binding post or Speakon output connectors


Some materials informations as follow:


1. Extended 20mm heatsink, more longer and more thick.

2. High quality Blue amplifier board.

3. Use original "Sanken" and "Fairchild" transistor.

4. Use high quality fan from Taiwan.

5. Use original "Siemems" capacitors.
- 10pcs 3300uf/200V
- 4pcs 1800uf/200V

6. Use Switzerland XLR Brand -- Neutrik

FP10000Q SPECIFICATIONS
8 ohms Stereo Power: 4x1350W
4 ohms Stereo Power: 4x2100W
2ohms Stereo Power : 4x2500W
8ohms Bridged Power: 2x4200W
4ohms Bridged Power: 2x5000W
Frequency Response(+0/-0.3dB,1W/8Ω): 20 Hz - 34 kHz
THD 20 Hz - 20 kHz for 1 W: <0.1%
Signal-to-Noise Ratio: >112 dBA
Channel separation (Crosstalk) at 1 kHz: >70 dB
Input Connectors (per channel): 3-pin XLR, electronically balanced
Output Connectors (per channel): Binding Posts 2-pole
TourClass Protection: ACL,IGM, AutoRamp, short circuit, DC voltage, turn-on/off transient, current inrush,sub/ultrasonic input
Operating voltage, 230 V / 115 V nominal: 130-265 V / 65-135V selectable
Voltage Gain(dB): 23, 26, 29, 32, 35, 38, 41, 44 dB selectable
Input impedance: 20 kOhm
Level adjustment (per ch.): Front-panel potentiometer, 31 position detented from -inf to 0 dB
Dimensions (W*H*L): 88mmX483mm×396mm
Packing dimension (W*H*L): 180mmX560mm×500mm
Net weight: 12.5kg
Gross weight: 14.5kg
